RabbitMQ
# Rabbitmq 了解

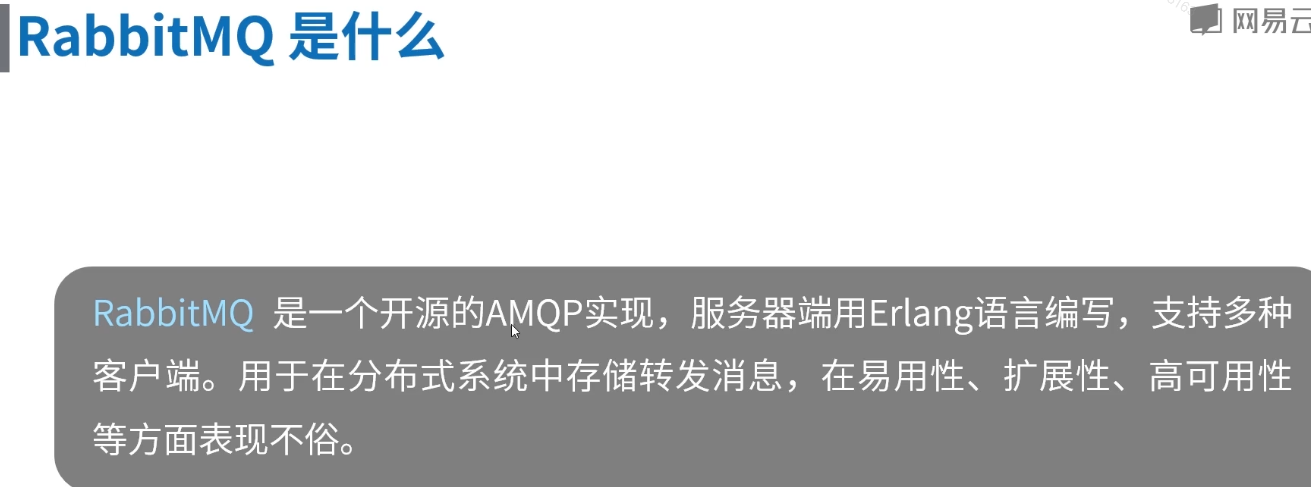

## 是什么
![image.png](https://cos.easydoc.net/31477061/files/kqc3tpsc.png)

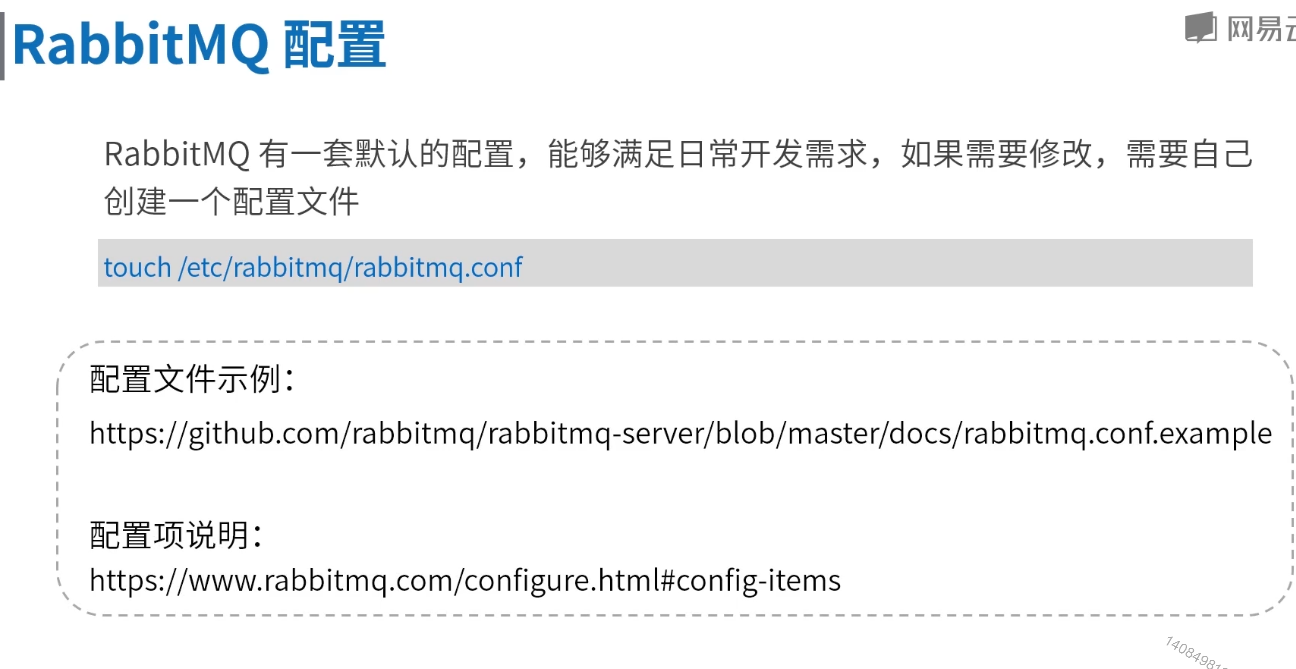

## 配置
![image.png](https://cos.easydoc.net/31477061/files/kqc3vcvq.png)

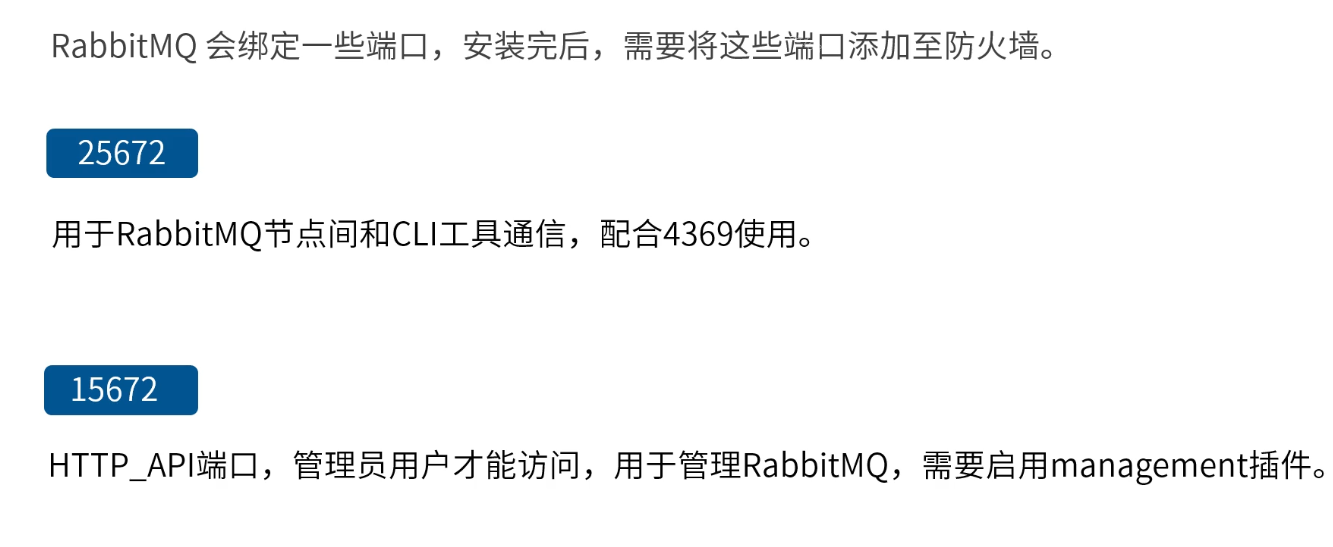

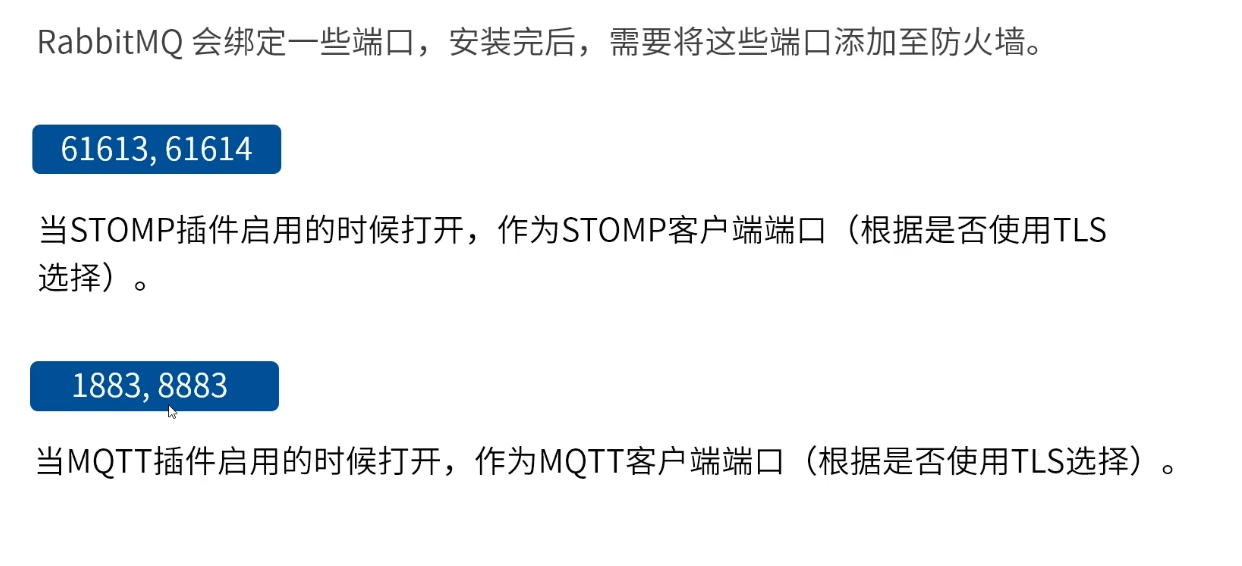

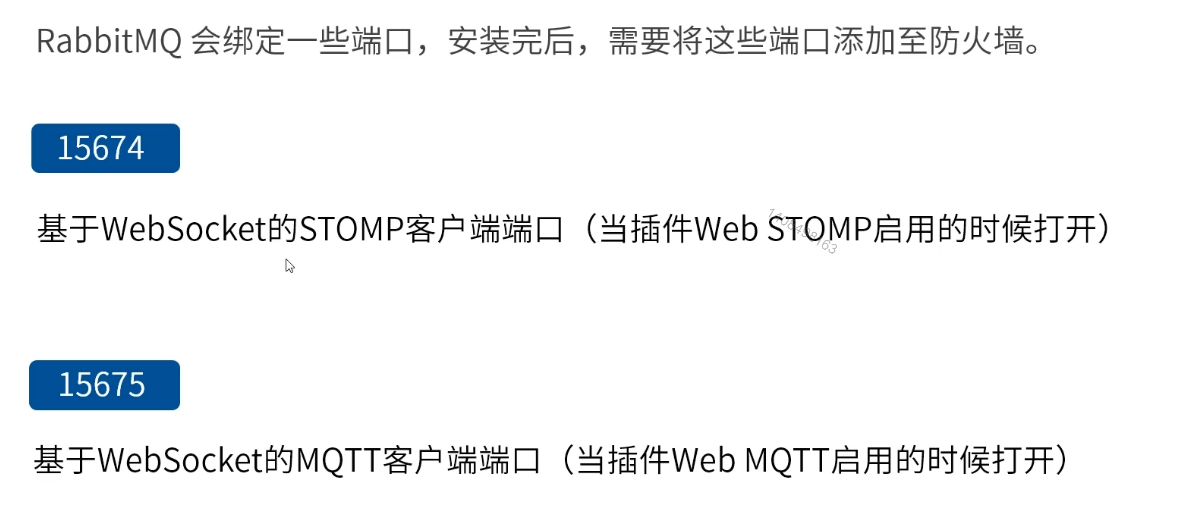

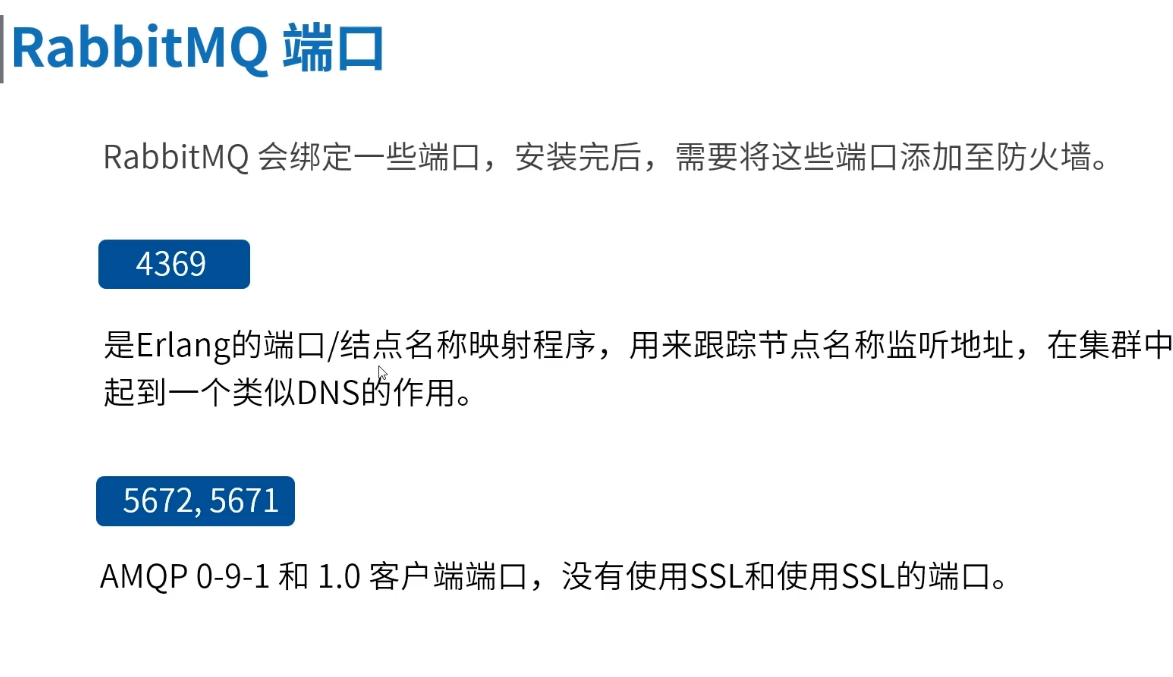

## 常用端口
![image.png](https://cos.easydoc.net/31477061/files/kqc3xpjd.png)
![image.png](https://cos.easydoc.net/31477061/files/kqc3yabg.png)
![image.png](https://cos.easydoc.net/31477061/files/kqc3zbw4.png)
![image.png](https://cos.easydoc.net/31477061/files/kqc3zhg2.png)

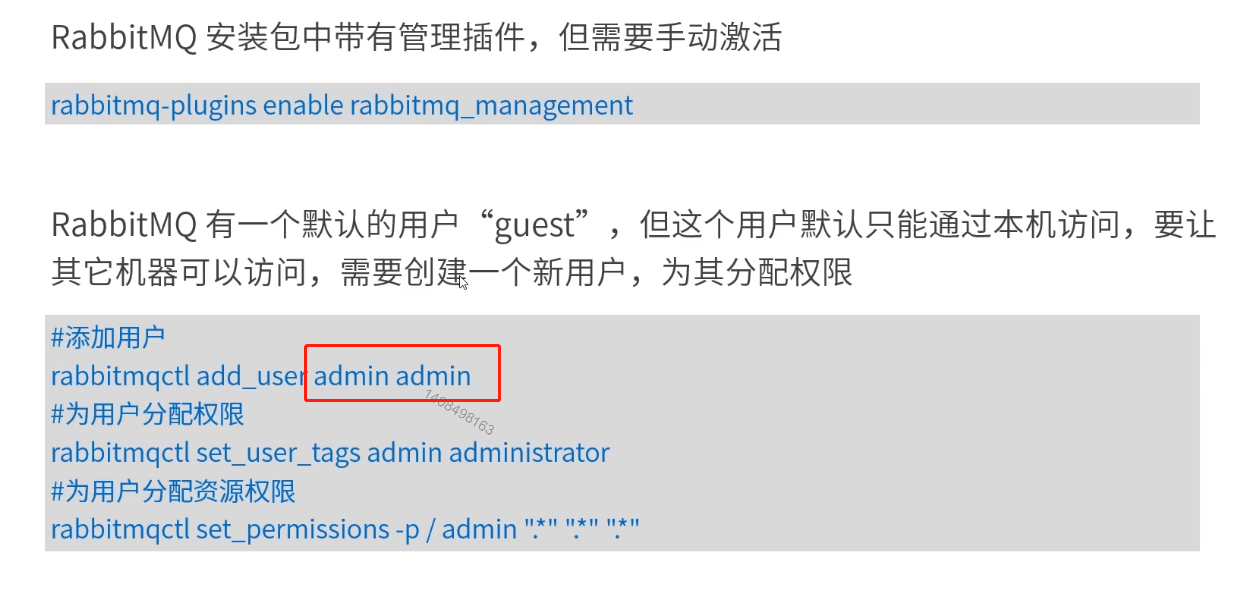

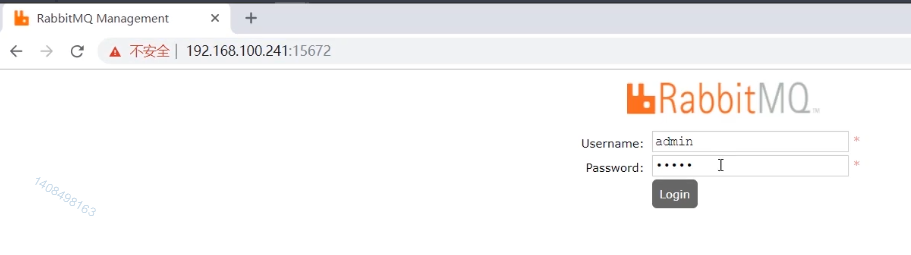

## 管理界面
![image.png](https://cos.easydoc.net/31477061/files/kqc4528i.png)
![image.png](https://cos.easydoc.net/31477061/files/kqc42ait.png)

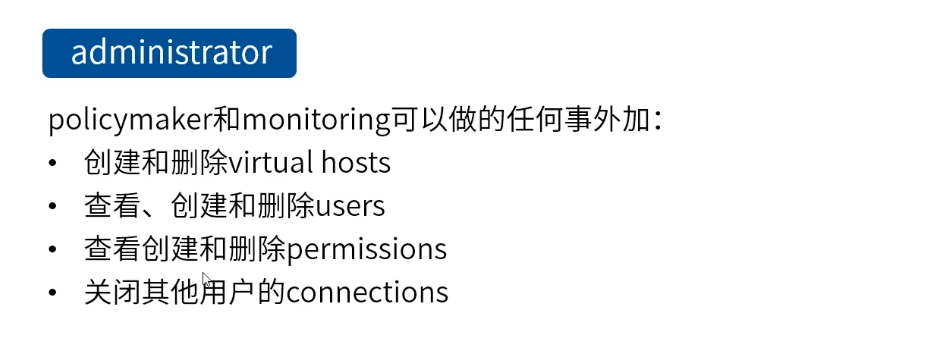

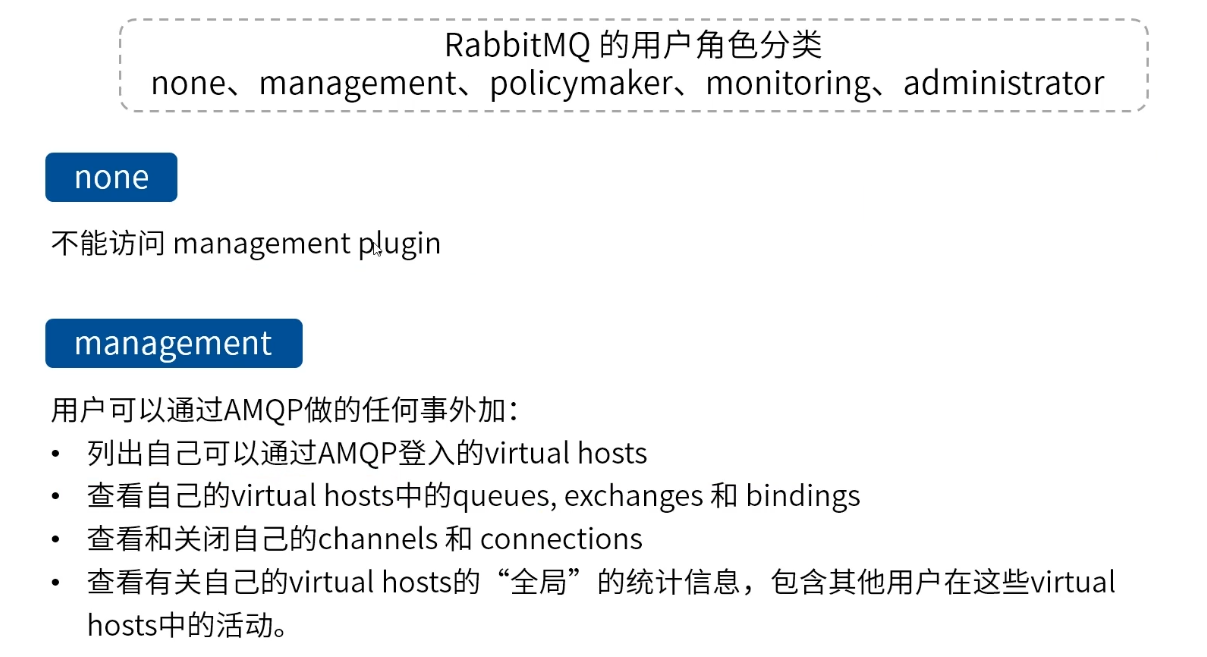

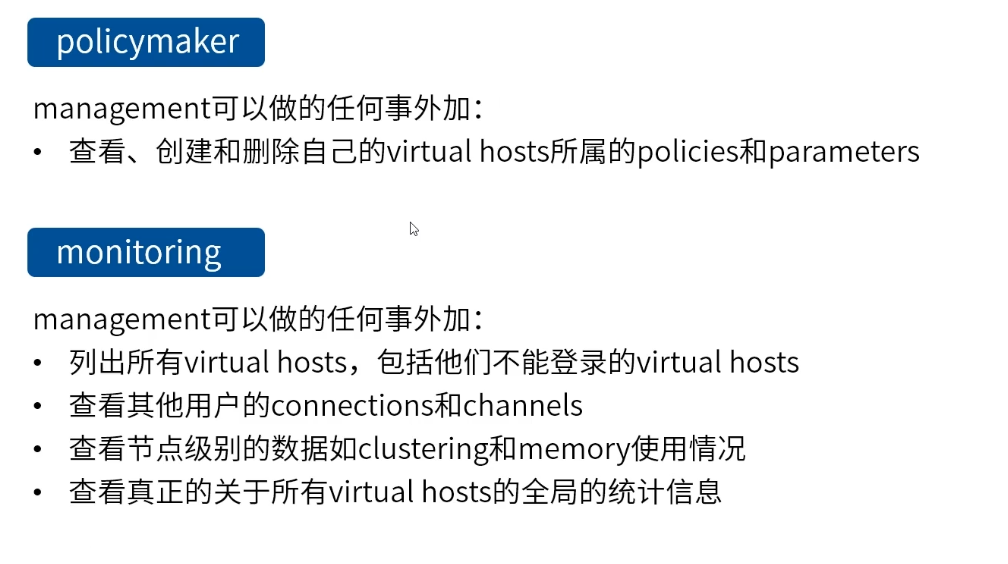

### 权限种类 none management policymaker monitoring administrator
![image.png](https://cos.easydoc.net/31477061/files/kqc46bne.png)
![image.png](https://cos.easydoc.net/31477061/files/kqc48pwl.png)
![image.png](https://cos.easydoc.net/31477061/files/kqc49m5c.png)
# java使用

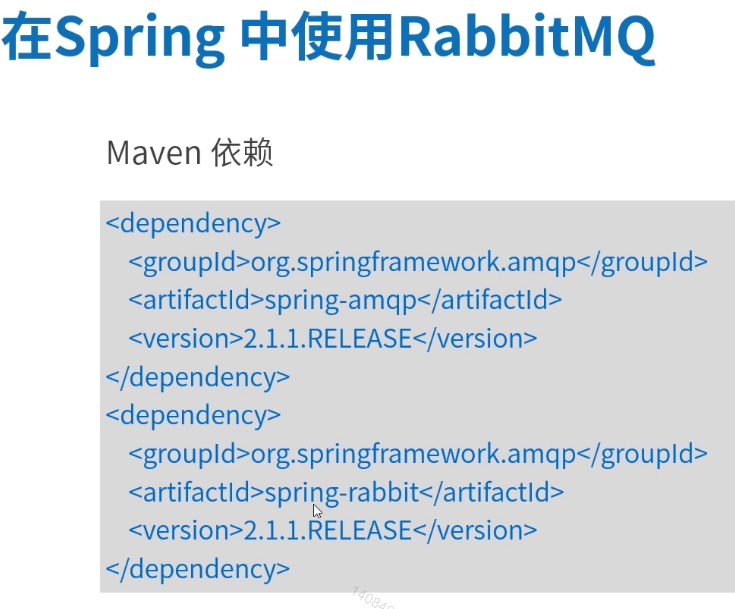

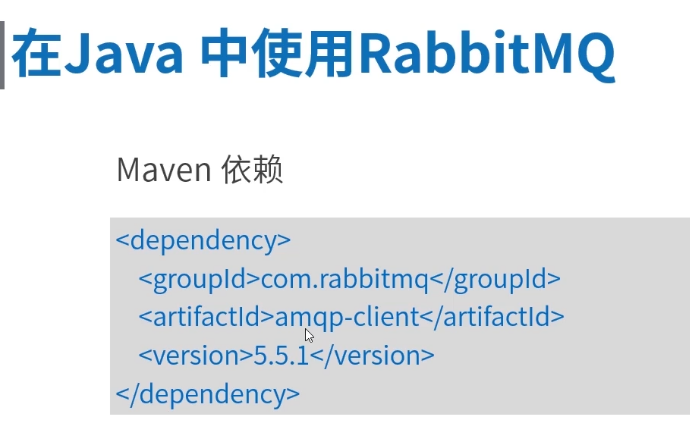

## 添加依赖
![image.png](https://cos.easydoc.net/31477061/files/kqc4e7kg.png)
![image.png](https://cos.easydoc.net/31477061/files/kqc4eged.png)
## 生产者代码
```
package com.study.rabbitmq.a132.simple;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import java.io.IOException;
import java.util.concurrent.TimeoutException;
/**
* 简单队列生产者
* 使用RabbitMQ的默认交换器发送消息
*/
public class Producer {
public static void main(String[] args) {
// 1、创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
// 2、设置连接属性
factory.setHost("192.168.100.242");
factory.setPort(5672);
factory.setUsername("admin");
factory.setPassword("admin");
Connection connection = null;
Channel channel = null;
try {
// 3、从连接工厂获取连接
connection = factory.newConnection("生产者");
// 4、从链接中创建通道
channel = connection.createChannel();
/**
* 5、声明(创建)队列
* 如果队列不存在,才会创建
* RabbitMQ 不允许声明两个队列名相同,属性不同的队列,否则会报错
*
* queueDeclare参数说明:
* @param queue 队列名称
* @param durable 队列是否持久化
* @param exclusive 是否排他,即是否为私有的,如果为true,会对当前队列加锁,其它通道不能访问,并且在连接关闭时会自动删除,不受持久化和自动删除的属性控制
* @param autoDelete 是否自动删除,当最后一个消费者断开连接之后是否自动删除
* @param arguments 队列参数,设置队列的有效期、消息最大长度、队列中所有消息的生命周期等等
*/
channel.queueDeclare("queue1", false, false, false, null);
// 消息内容
String message = "Hello World!";
// 6、发送消息 将这个队列绑定到一个名称为空的 Direct Exchange 上,绑定 RoutingKey 与队列名称相同。
channel.basicPublish("", "queue1", null, message.getBytes());
System.out.println("消息已发送!");
} catch (IOException e) {
e.printStackTrace();
} catch (TimeoutException e) {
e.printStackTrace();
} finally {
// 7、关闭通道
if (channel != null && channel.isOpen()) {
try {
channel.close();
} catch (IOException e) {
e.printStackTrace();
} catch (TimeoutException e) {
e.printStackTrace();
}
}
// 8、关闭连接
if (connection != null && connection.isOpen()) {
try {
connection.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
}
}
```
## 生产者代码2
```
package com.study.rabbitmq.a132.routing;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import java.io.IOException;
import java.util.concurrent.TimeoutException;
/**
* Topic--生产者
*
* 生产者将消息发送到topic类型的交换器上,和routing的用法类似,都是通过routingKey路由,但topic类型交换器的routingKey支持通配符
*/
public class Producer {
public static void main(String[] args) {
// 1、创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
// 2、设置连接属性
factory.setHost("192.168.100.242");
factory.setPort(5672);
factory.setUsername("admin");
factory.setPassword("admin");
Connection connection = null;
Channel channel = null;
try {
// 3、从连接工厂获取连接
connection = factory.newConnection("生产者");
// 4、从链接中创建通道
channel = connection.createChannel();
// 路由关系如下:com.# --> queue-1 *.order.* ---> queue-2
// 消息内容
String message = "Hello A";
// 发送消息到topic_test交换器上
channel.basicPublish("topic-exchange", "com.order.create", null, message.getBytes());
System.out.println("消息 " + message + " 已发送!");
// 消息内容
message = "Hello B";
// 发送消息到topic_test交换器上
channel.basicPublish("topic-exchange", "com.sms.create", null, message.getBytes());
System.out.println("消息 " + message + " 已发送!");
// 消息内容
message = "Hello C";
// 发送消息到topic_test交换器上
channel.basicPublish("topic-exchange", "cn.order.create", null, message.getBytes());
System.out.println("消息 " + message + " 已发送!");
} catch (IOException e) {
e.printStackTrace();
} catch (TimeoutException e) {
e.printStackTrace();
} finally {
// 7、关闭通道
if (channel != null && channel.isOpen()) {
try {
channel.close();
} catch (IOException e) {
e.printStackTrace();
} catch (TimeoutException e) {
e.printStackTrace();
}
}
// 8、关闭连接
if (connection != null && connection.isOpen()) {
try {
connection.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
}
}
```
## 消费者代码
```
package com.study.rabbitmq.a132.simple;
import com.rabbitmq.client.*;
import java.io.IOException;
import java.util.concurrent.TimeoutException;
/**
* 简单队列消费者
*/
public class Consumer {
public static void main(String[] args) {
// 1、创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
// 2、设置连接属性
factory.setHost("192.168.100.242");
factory.setUsername("admin");
factory.setPassword("admin");
Connection connection = null;
Channel channel = null;
try {
// 3、从连接工厂获取连接
connection = factory.newConnection("消费者");
// 4、从链接中创建通道
channel = connection.createChannel();
/**
* 5、声明(创建)队列
* 如果队列不存在,才会创建
* RabbitMQ 不允许声明两个队列名相同,属性不同的队列,否则会报错
*
* queueDeclare参数说明:
* @param queue 队列名称
* @param durable 队列是否持久化
* @param exclusive 是否排他,即是否为私有的,如果为true,会对当前队列加锁,其它通道不能访问,
* 并且在连接关闭时会自动删除,不受持久化和自动删除的属性控制。
* 一般在队列和交换器绑定时使用
* @param autoDelete 是否自动删除,当最后一个消费者断开连接之后是否自动删除
* @param arguments 队列参数,设置队列的有效期、消息最大长度、队列中所有消息的生命周期等等
*/
channel.queueDeclare("queue1", false, false, false, null);
// 6、定义收到消息后的回调
DeliverCallback callback = new DeliverCallback() {
public void handle(String consumerTag, Delivery message) throws IOException {
System.out.println("收到消息:" + new String(message.getBody(), "UTF-8"));
}
};
// 7、监听队列
channel.basicConsume("queue1", true, callback, new CancelCallback() {
public void handle(String consumerTag) throws IOException {
}
});
System.out.println("开始接收消息");
System.in.read();
} catch (IOException e) {
e.printStackTrace();
} catch (TimeoutException e) {
e.printStackTrace();
} finally {
// 8、关闭通道
if (channel != null && channel.isOpen()) {
try {
channel.close();
} catch (IOException e) {
e.printStackTrace();
} catch (TimeoutException e) {
e.printStackTrace();
}
}
// 9、关闭连接
if (connection != null && connection.isOpen()) {
try {
connection.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
}
}
```
## 消费者代码2
```
package com.study.rabbitmq.a132.routing;
import com.rabbitmq.client.*;
import java.io.IOException;
import java.util.concurrent.TimeoutException;
/**
* 路由--消费者
*
* 消费者通过一个临时队列和交换器绑定,接收发送到交换器上的消息
*/
public class Consumer {
private static Runnable receive = new Runnable() {
public void run() {
// 1、创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
// 2、设置连接属性
factory.setHost("192.168.100.242");
factory.setPort(5672);
factory.setUsername("admin");
factory.setPassword("admin");
Connection connection = null;
Channel channel = null;
final String queueName = Thread.currentThread().getName();
try {
// 3、从连接工厂获取连接
connection = factory.newConnection("消费者");
// 4、从链接中创建通道
channel = connection.createChannel();
// 定义消息接收回调对象
DeliverCallback callback = new DeliverCallback() {
public void handle(String consumerTag, Delivery message) throws IOException {
System.out.println(queueName + " 收到消息:" + new String(message.getBody(), "UTF-8"));
}
};
// 监听队列
channel.basicConsume(queueName, true, callback, new CancelCallback() {
public void handle(String consumerTag) throws IOException {
}
});
System.out.println(queueName + " 开始接收消息");
System.in.read();
} catch (IOException e) {
e.printStackTrace();
} catch (TimeoutException e) {
e.printStackTrace();
} finally {
// 8、关闭通道
if (channel != null && channel.isOpen()) {
try {
channel.close();
} catch (IOException e) {
e.printStackTrace();
} catch (TimeoutException e) {
e.printStackTrace();
}
}
// 9、关闭连接
if (connection != null && connection.isOpen()) {
try {
connection.close();
} catch (IOException e) {
e.printStackTrace();
}
}
}
}
};
public static void main(String[] args) {
new Thread(receive, "queue-1").start();
new Thread(receive, "queue-2").start();
new Thread(receive, "queue-3").start();
}
}
```
## 消费者 添加一次接收消息数量
![image.png](https://cos.easydoc.net/31477061/files/ks5hdnq4.png)

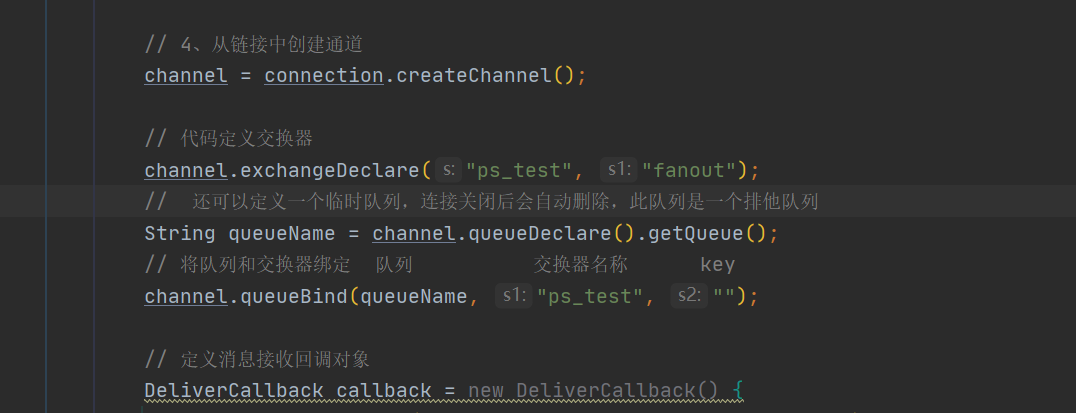

## 代码定义交换器 及绑定
![image.png](https://cos.easydoc.net/31477061/files/ks5i4spj.png)

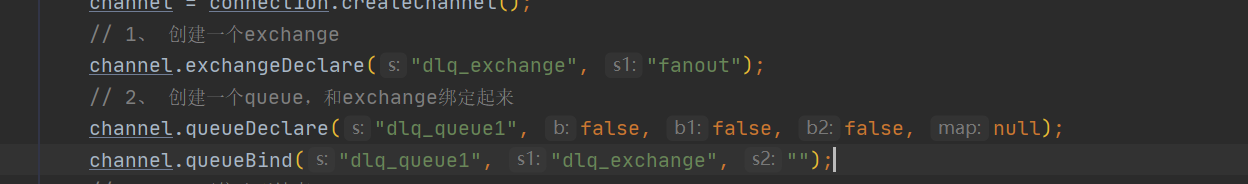

## 创建一个exchange 创建一个queue,和exchange绑定起来
![image.png](https://cos.easydoc.net/31477061/files/ks5nfw2t.png)

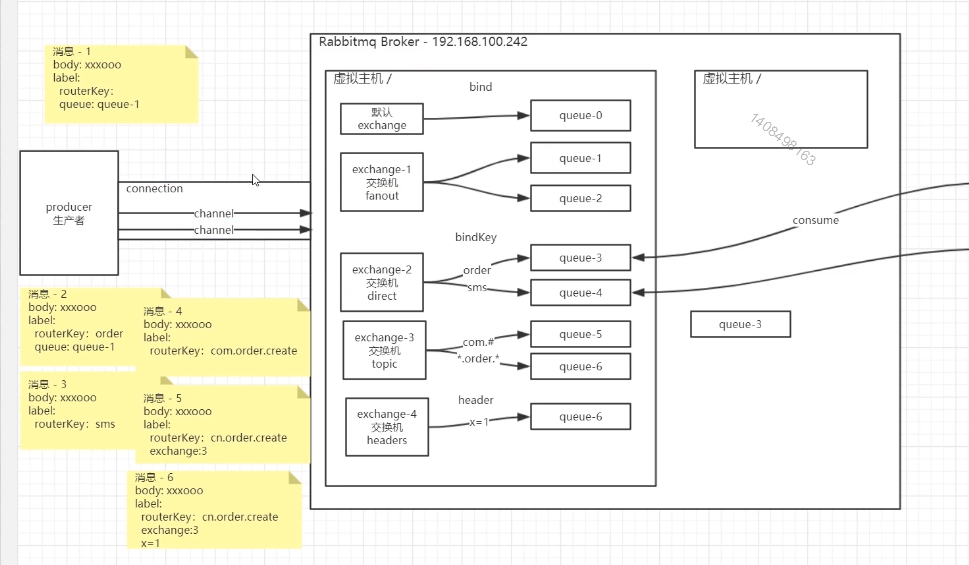

## rabbit 图解
![image.png](https://cos.easydoc.net/31477061/files/kqc8o0pe.png)
## java代码 访问交换机
